Batteries connected in serial

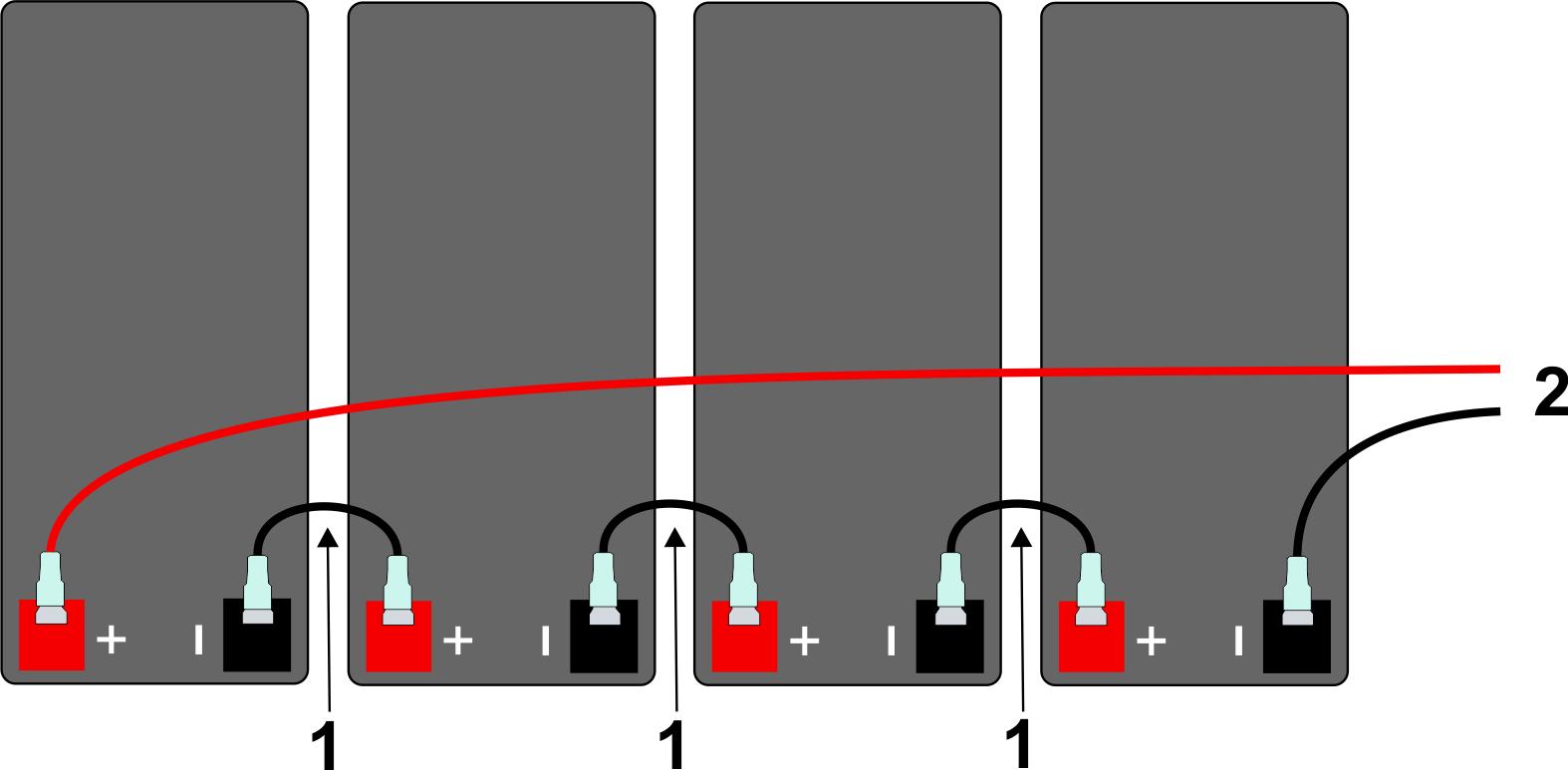

The batteries in the power supply units are to be connected in serial to achieve the operational voltage. AX-Power 1 has two batteries, all other PoE-switches from Axema runs with four batteries.

1. Connection cable
2. Connect to battery connector of the PoE-switch (red +, black -)
